EVID-P6.2 Pendant speaker 6.5"
The Electro-Voice EVID-P6.2 loudspeaker system is a complete two-way pendant loudspeaker. The EVID-P6.2 loudspeaker utilizes a 2nd order crossover network with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels.
Highlights:
- Full bandwidth overload protection
- Front baffle wattage tap adjustment
- Magnetic grille for easy tap adjustment access
- Indoor and outdoor use
- Provides pass-through to additional speakers
- UL1480A and CSA C22.2 certified for indoor installations and protected outdoor installations
- For more info: EVID-P6.2 User Manual
- Dimensions (depth x diam.) 11.9 in x 12.2 in (301.0 mm x 310.0 mm)
- Net weight 11.65 lb (5.28 kg)

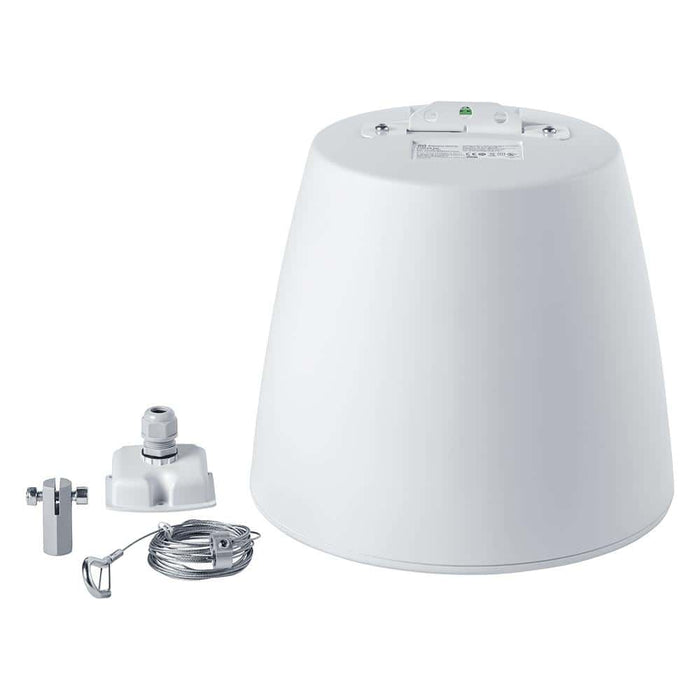

Included hardware:
- Pendant Suspension Cable
- Material Steel wire rope
- Working load limit 10 kg (22 lb)
- Length 4.57 m (15 ft.)
- Approvals UL2442
The package consists of a bezel assembly, magnetic grille, rear enclosure, 6.5-inch coax two-way loudspeaker and internal line-matching transformer. The loudspeaker features a titanium dome tweeter.
The EVID-P6.2 loudspeaker utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75W, 7.5W, 15W or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8 ohm bypass. Selection is via a convenient switch on the front baffle, easily accessible by removing the magnetic grille.
Provides passthrough to additional speakers

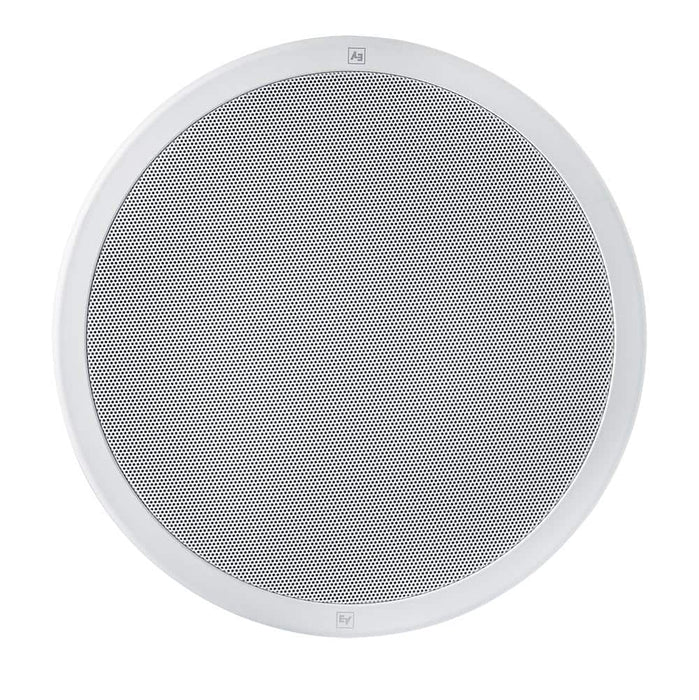

The perforated grille is finished in semi-gloss black or white powder-coated enamel. The baffle, bezel, and rear-enclosure are constructed from UL 94V-0 rated ABS. The connections on the rear provide access to a 4-pin terminal block that allows direct connection to the speaker with 12 gauge wire and provides passthrough to additional speakers.
High efficiency, high-maximum output
The EVID line of speakers has been designed to work together as a complete system in a wide range of different constructions. The pendant and ceiling loudspeakers provide wide dispersion, high efficiency, high-maximum output, ease of installation, and wide range reproduction of music or voice.
Specifications
| Rated frequency range |
60 Hz - 20 kHz |
| Sensitivity (SPL 1 W/1 m) |
87 dB |
| Coverage pattern1
|
115° conical |
| Power handling (@ 8Ω) |
75 W (with overload protection) |
|
| Rated impedance |
8 Ω |
| Recommended High-Pass frequency |
60 Hz |
| Input configuration |
8Ω; 70V/100V |
| 70V/100V power taps |
1.8 (70V only)/3.7/7.5/15/30 W |
| LF transducer |
6.5 in (165 mm) high-compliance driver (weatherized cone) |
| HF transducer |
1 in (25 mm) titanium dome |
| Mounting system |
Rear mounted suspension points |
| Acoustic design |
Ported cabinet, two-way design, internally damped, w/passive crossover |
| Approvals |
CE, UL 1480A, CSA 22.2 |
| Cabinet construction |
UL94V-0 rated enclosure and baffle |
| Grille construction |
Powder-coated steel |
| Colors |
Black or white |
| Dimensions (depth x diam.) |
11.9 in x 12.2 in (301.0 mm x 310.0 mm) |
| Net weight |
11.65 lb (5.28 kg) |
| Shipping weight |
13.85 lb (6.28 kg) |
| Included accessories |
Grille removal tool |
