Chauvet Professional OVATIONF55WW Warm White LED Fresnel
Need more info before you place your order?
Questions about equipment compatibility or shipping times? Contact us, we can help!
Need more info before you place your order?
Questions about equipment compatibility or shipping times? Contact us, we can help!

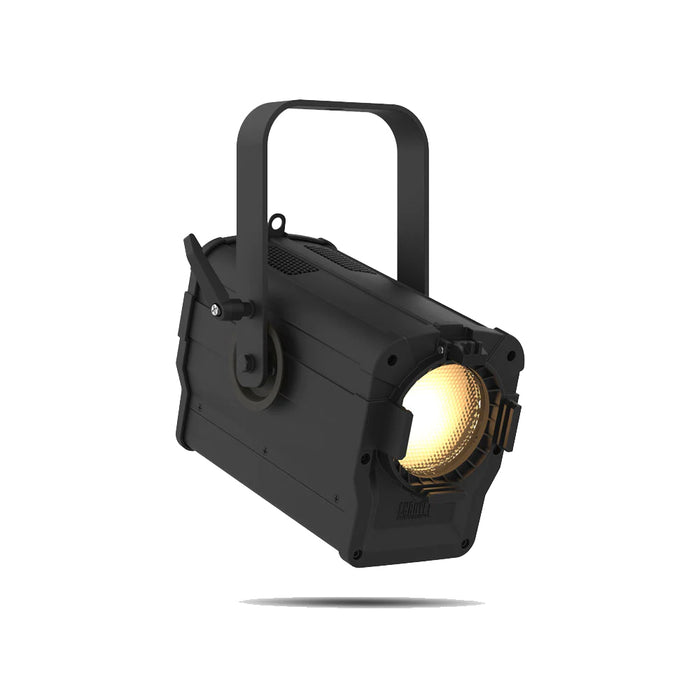

The Chauvet Professional OVATIONF55WW Warm White LED Fresnel is an efficient warm white LED (3- inch) inkie Fresnel-style fixture ideal for short throw applications in television, studios, and theatres. It projects a bright, beautifully soft field of light within a 20°- 75° field range controlled by a manual zoom.
WHAT'S INCLUDED
AT A GLANCE
Compact warm white Fresnel for tight spaces and on-location lighting
Soft and even field of light
16-bit dimming resolution for smooth fades
Virtually silent operation for use in any situation
Manually controlled variable zoom range between 20° to 75°
SPECIFICATIONS
OPTICAL
Light Source: 1 LED (WW) 36 W, (740 mA), 3120 K, 50,000 hours life expectancy
Color Temperature (at full): 3120 K
CRI: 92.5
Beam Angle: 20.1° to 61.4°
Field Angle: 31.5° to 75.1°
Zoom Range: 20° to 75°
Lumens (31.5°): 959
Lumens (75.1°): 2,243
Illuminance (31.5°) : 313 lux @ 5 m
Illuminance (75.1°): 97 lux @ 5 m
DYNAMIC EFFECTS
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Manual
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: No
Color Temperature Presets: No
Dim Modes: 4
Dim Curves: 4
Built-in Automated Programs: No
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 25,000 Hz
CONSTRUCTION / PHYSICAL
Dimensions: 10.87 x 6.81 x 6.53 in (276.3 x 173 x 166 mm)
Weight: 4.8 lb (2.2 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Accessory Holder/Gel Frame Size: 3.25 in (83 mm)
CONTROL
Control Protocol: DMX, RDM
DMX Channels: 1, 2 or 5
Modes/Personalities: 3 personalities (1CH, 2CH, 5CH)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 33 W, 0.285 A @ 120 V, 60 Hz
Power and Current: 33 W, 0.178 A @ 208 V, 60 Hz
Power and Current: 34 W, 0.155 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, MET
IP Rating: IP20, dry location
OPTIONAL ACCESSORIES
