Chauvet DJ Low-profile, high-output quad-color (RGBA) LED wash light
Product Info

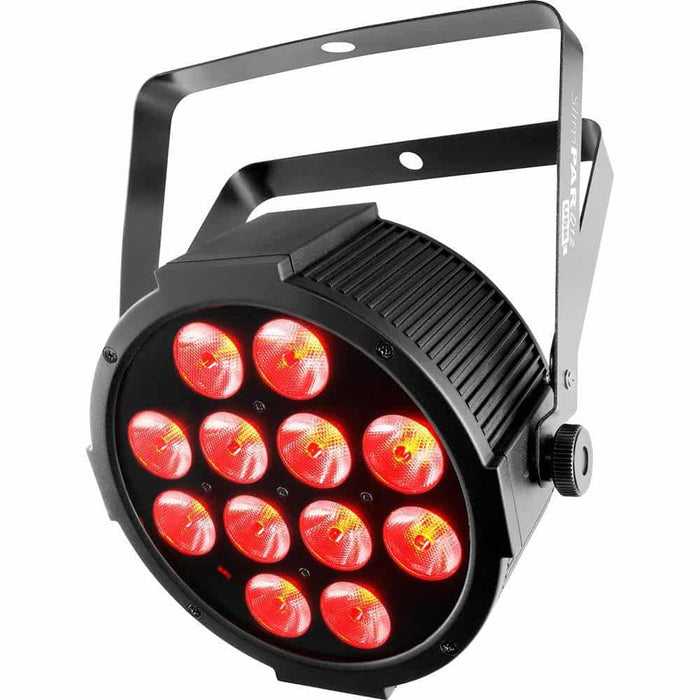

SlimPAR Q12 USB is a low-profile, high-output quad-color (RGBA) LED wash light with D-Fi USB for instant wireless connectivity. It is controllable via master/slave, DMX, standalone modes or the point-and-shoot IRC-6 remote (sold separately). It also features multiple user-configurable settings. SlimPAR Q12 USB creates natural-looking color temperatures thanks to punchy amber LEDs. Its flicker-free operation makes it well-suited for video productions. With no moving parts, the fixture is ideal for applications where silence is essential. Multiple units can be power-linked to save time running cables and extension cords.
Highlights
-
Low-profile, high-output quad-color (RGBA) LED Par
-
D-Fi USB compatibility for wireless Master/Slave or DMX control
-
Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
-
Flicker-free operation suitable for on-camera use
-
Easily control static colors and automated programs with the optional IRC-6 remote
-
Ideal for quiet applications due to silent operation and no moving parts
-
Increase standalone versatility with multiple user-configurable settings
-
Save time running cables and extension cords by power linking multiple units
-
Fits best in the CHS-30 VIP Gear Bag
-
Compact design easily fits inside sticks of TRUSST®
Chauvet SlimPAR Q12 USB User Manual
Chauvet SlimPAR Q12 USB Quick Reference Guide
WHAT'S INCLUDED
- Includes one Chauvet SlimPAR Q12 USB Light
- Power cord
- Hanging bracket with mounting hardware
- Warranty card
- Quick Reference Guide
More Info
Specifications
- DMX Channels: 4 or 9
- DMX Connectors: 3-pin XLR
- Light Source: 12 LEDs (quad-color RGBA) 4 W, (0.8 A), 50,000 hours life expectancy
- Strobe Rate: 0 to 18 Hz
- PWM Frequency: 1,200 Hz
- Beam Angle: 17°
- Field Angle: 35°
- Illuminance: 2,738 lux @ 2 m
- Power Linking: 12 units @ 120 V; 21 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power and Current: 45 W, 0.7 A @ 120 V, 60 Hz
44 W, 0.4 A @ 230 V, 50 Hz - Weight: 4.8 lb (2.2 kg)
- Size: 9.7 x 3.6 x 11.5 in (247 x 92 x 293 mm)
- Approvals: CE
- Optional Controllers: IRC-6
