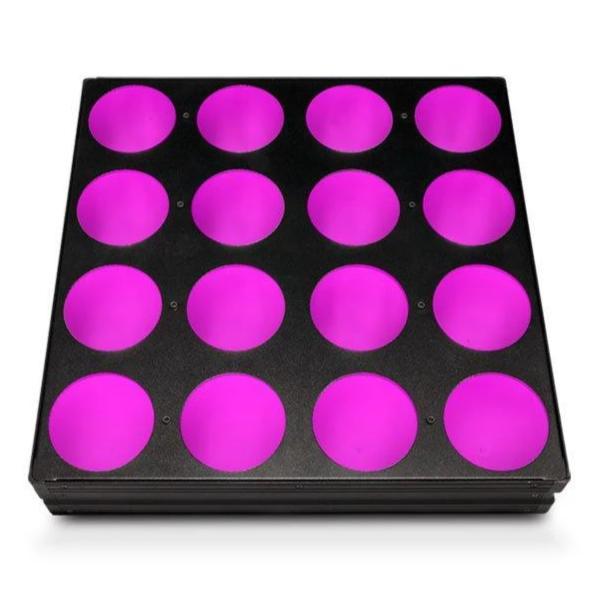

Chauvet Chauvet Pro NEXUS4X4 LED Wash Panel - 4 Pack

Chauvet Professional NEXUS4X4 LED Wash Panel - 4 Pack

Name: Chauvet Professional NEXUS4X4 LED Wash Panel - 4 Pack
Brand: Chauvet Professional
SKU: NEXUS4X4PACK
Price: 1500.0 USD
Availability: OutOfStock

by Chauvet Professional

SKU NEXUS4X4PACK

Sold out

$5,639.10

$5,639.10 - $5,639.10

$5,639.10

$1,500.00

$1,500.00 - $1,500.00

$1,500.00

Save an extra 50%!

Use coupon code: OVERSTOCK50

Free Shipping at $20+

Fast free shipping on orders over $20*

Free Technical Support

For Every Product We Sell

Questions? Need a quote?

Connect with us - click here!

No returns allowed for this item.

All sales are final. Need help? Contact us before ordering.

Need more info before you place your order?

Questions about equipment compatibility or shipping times? Contact us, we can help!

Description

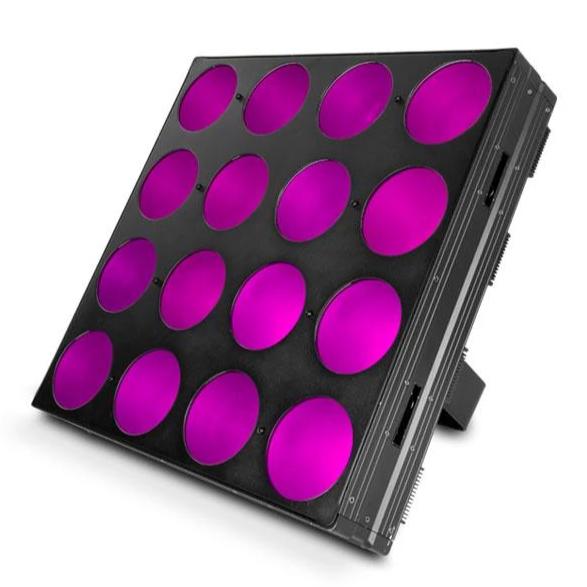

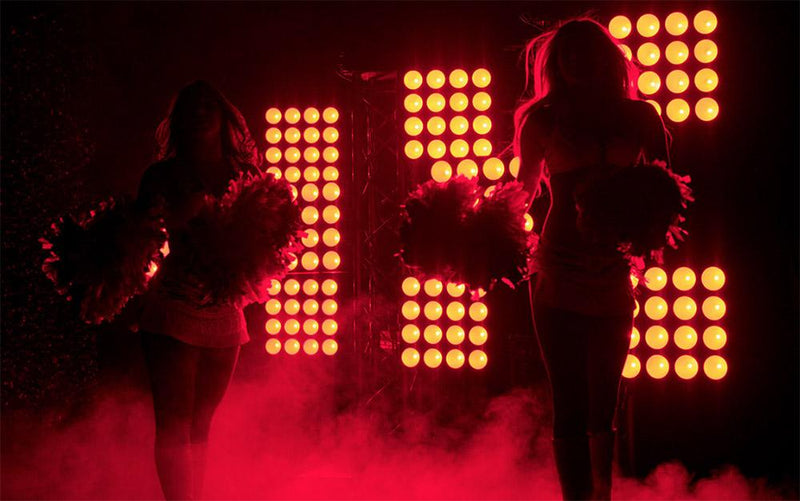

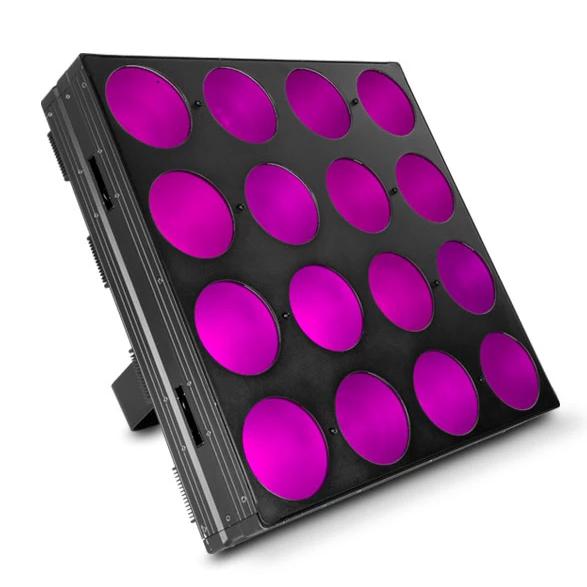

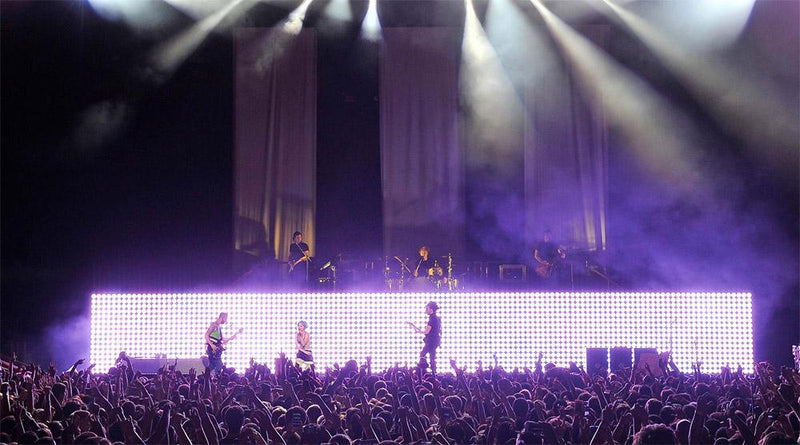

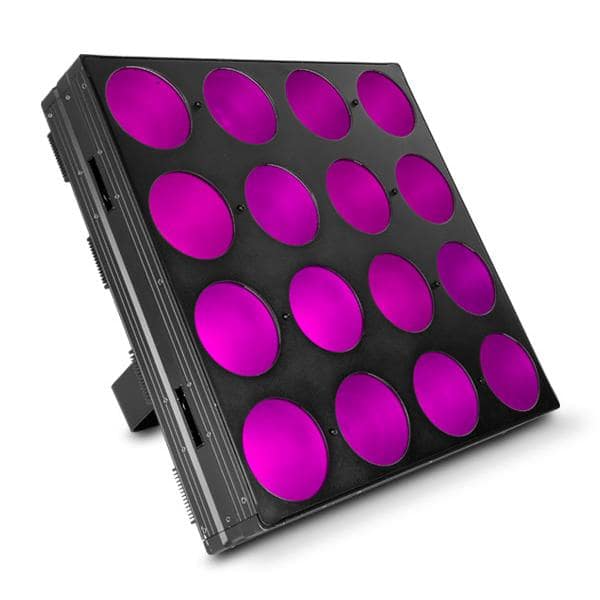

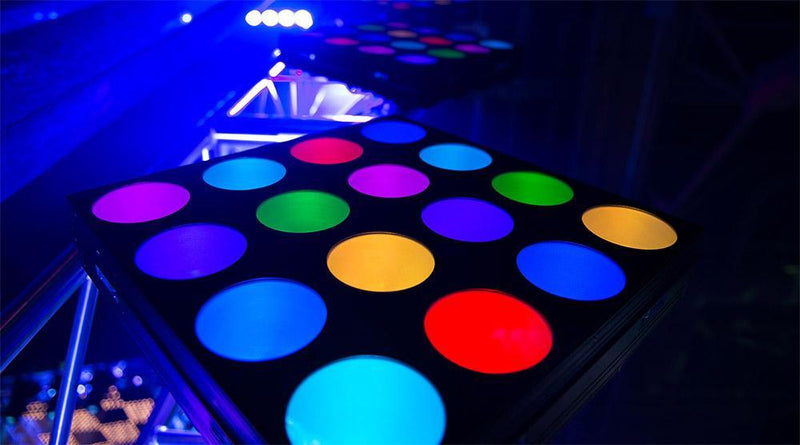

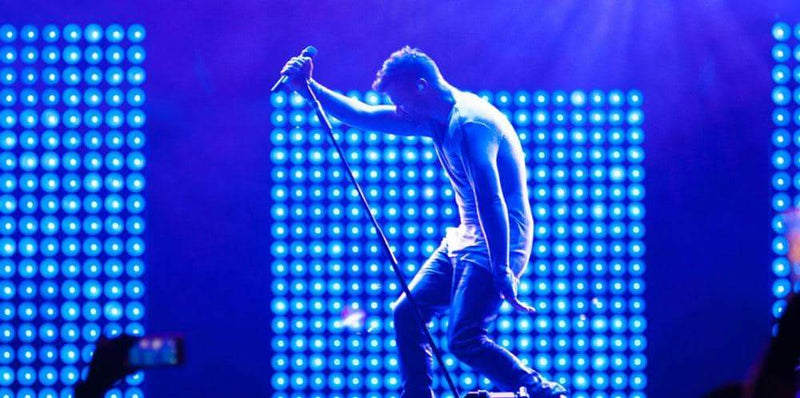

Chauvet Professional's Nexus 4×4 is an award-winning LED wash panel that combines the sizzle of pixel mapping and robust lighting. Whether in use for front viewing or as a backdrop, Nexus 4×4 promises a hard-to-match visual impact. Ideal for: fitness centers, cycle studios. festivals, concert touring and commercial installations

Product details:

Pixel-mapping RGB blinder allows you to achieve vibrant colors with bright COB LEDs
Increase pixel mapping options by controlling pixels individually
Build large arrays by linking multiple panels together with integrated locks
Works seamlessly with Nexus 2x2 and Nexus 4x1
Design with flexible control options: Kling-Net, Art-Net, or DMX
Use universal power connectors: Neutrik powerCON, Neutrik etherCON, 3- and 5-pin XLR DMX

Included:

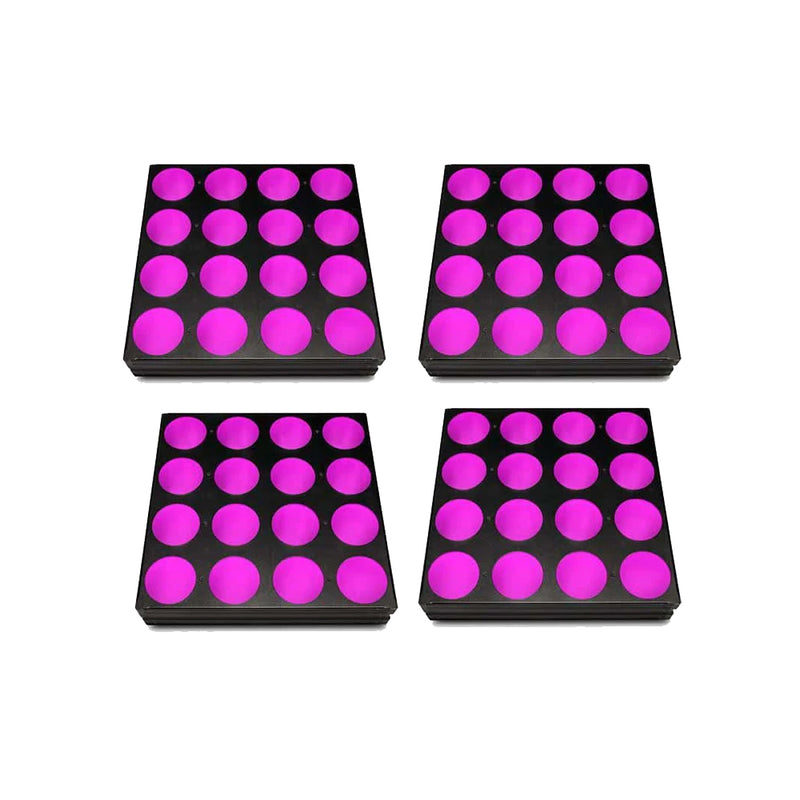

(4) Nexus 4x4 panels
Neutrik powerCON power cord
#5 Allen wrench
Road case (4 Pack)

Chauvet Pro NEXUS4X4 LED Wash Panel User Manual
Chauvet Pro NEXUS4X4 LED Wash Panel Reference Guide

Specs

OPTICAL

Light Source: 16 LEDs (tri-color RGB) 27 W, (2 A), 50,000 hours life expectancy
Color Temperature (range): 2,800 to 10,000 K
Beam Angle: 45°
Field Angle: 75°
Illuminance (total): 484 lux @ 5 m
Pixels: 4 x 4
Pixel Pitch: 115 mm
Pixel Density: 64/m2

DYNAMIC EFFECTS

Dimmer: Electronic
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

Dimensions (single unit): 18.07 x 6.61 x 18.07 in (462 x 168 x 462 mm)
Dimensions (roadcase): 37.99 x 20.67 x 27.56 in (965 x 525 x 700 mm)
Weight (single unit): 28.6 lb (13 kg)
Weight (roadcase): 81.6 lb (37 kg)
Exterior Color: Black
Housing Material: Aluminum alloy and steel

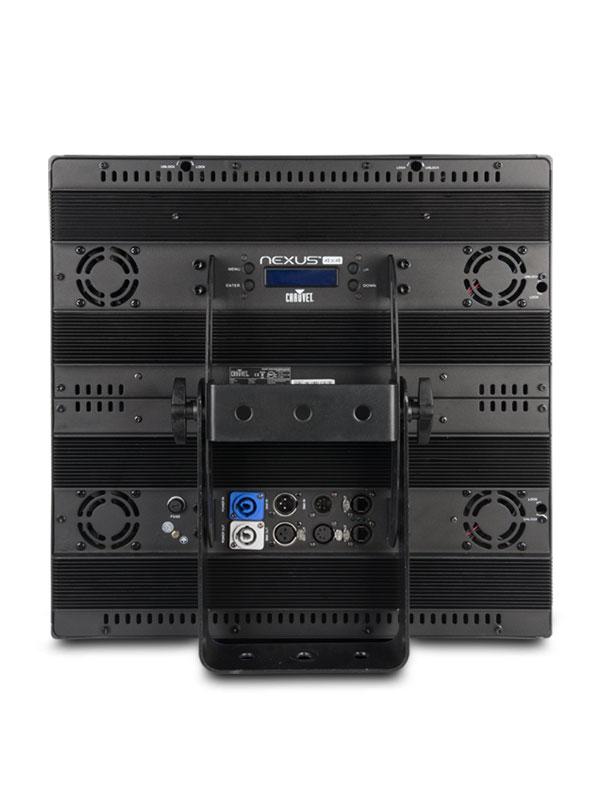

CONNECTIONS

Power Connection: Edison (Local) plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3- and 5-pin XLR, Neutrik etherCON
Cable Length (power): 5 ft (1.5 m)

CONTROL

Control Protocol: Art-Net, Kling-Net, DMX
DMX Channels: 3, 5, 9, 48 or 53
Art-Net Channels: 48

ELECTRICAL

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V
Power and Current: 401 W, 3.35 A @ 120 V, 60 Hz
Power and Current: 393 W, 1.90 A @ 208 V, 50 Hz
Power and Current: 394 W, 1.71 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

CE, MET
IP Rating: IP20, dry location
