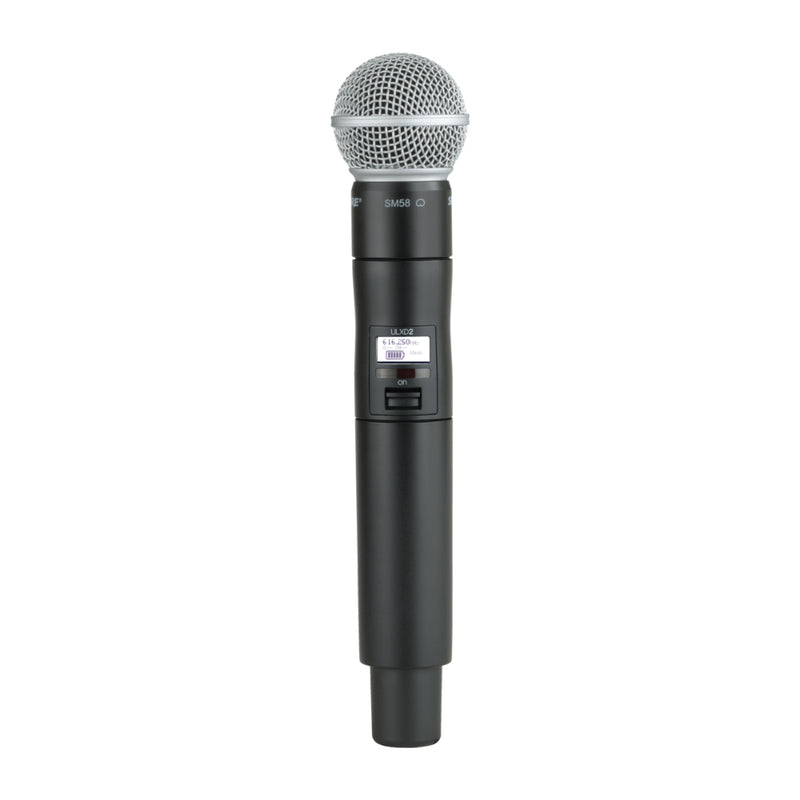

Shure ULXD2/SM58 Wireless Handheld Microphone Transmitter (Select Your Frequency)

Shure ULXD2/SM58 Wireless Handheld Microphone Transmitter (Select Your Frequency)

by Shure
SKU
$609.00 - $609.00
$609.00
$609.00 - $609.00
$609.00
Select Your Frequency
Request a quote

Need more info before you place your order?

Questions about equipment compatibility or shipping times? Contact us, we can help!

The ULXD2 from Shure is a handheld wireless transmitter perfectly compatible with ULX-D Digital Wireless Systems.

Need more info on this product, use this ONLINE FORM to submit your request for more information.

In the Box:

(1) SHURE ULX-D Handheld Transmitter (Select Your Frequency)

Features:

  • AES 256-bit encryption for applications for which secure transmission is needed
  • Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments
  • Optional Shure SB900B lithium-ion rechargeable battery pack provides over 12 hours of battery life, precision metering in hours and minutes, and zero memory effect
  • External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
  • Transmitter Mute Mode repurposes the On/Off switch into a mute switch, enabling audio muting while preserving RF channel presence
  • Backlit LCD with easy to navigate menu and controls
  • Rugged metal construction
  • Frequency and power lockout

The ULXD2/B87C Handheld Wireless Microphone Transmitter works with ULX-D Wireless Systems.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Specifications:

RF Carrier Range: 174–216 MHz, 470–865 MHz, 1492–1525 MHz, 1785–1805 MHz
Note: Varies by region (See Frequency Range and Ouput Power table)
Working Range: 100 m (328 ft)
Note: Actual range depends on RF signal absorption, reflection and interference.
RF Tuning Step Size: 25 kHz, varies by region
Image Rejection: >70 dB, typical
RF Sensitivity: -98dBm at 10-5 BER
Latency: <2.9 ms
Audio Frequency Response: ULXD1: 20 Hz – 20 kHz (±1 dB) ULXD2: 30 Hz – 20 kHz (±1 dB)
Note: Dependent on microphone type
Audio Dynamic Range System Gain: @ +10 XLR Analog Output: >120 dB, A-weighted
Dante Digital Output (Dual and Quad receivers): 130 dB (typical), A-weighted
Total Harmonic Distortion: −12 dBFS input, System Gain @ +10 <0.1%
System Audio Polarity Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
Operating Temperature Range: −18 °C (0 °F) to 50 °C (122 °F) Note: Battery characteristics may limit this range.
Storage Temperature Range: −29°C (−20°F) to 74°C (165°F) Note: Battery characteristics may limit this range
