The Samson AirLine 99m AH9 with Fitness Headset Microphone allows you to project crystal clear vocal audio that will be easily heard, even over the music. The sweat-resistant design provides the necessary protection with the microphone manufactured in a condensed capsule.
Product Features:
- Authentic wireless experience with no belt-packs and no cables
- Includes one headset and one windscreen
- Water & Sweat Resistant
- 100 operating channels - 24MHz Bandwidth
- Easy setup with 1-touch scan for best channel selection (watch the included video for more information)
- Warranty: 2 Year Manufacturer
- Windscreen colors may vary
- 300’ operating range
- LED Battery Life Indicator
- Up to 8hrs of Life
- One-touch mute / Variable gain control
- 1 Windscreen included
- Samson AirLine 99m User Manual
- Frequency-agile UHF wireless system
- 100 operating channels across 24MHz bandwidth
- Sweat rating: 2-non consecutive classes per day
- Up to 8 simultaneous systems per frequency band (region dependent)
Product Features (continued):
- Proper RF Diversity micro receiver design minimizes dropouts
- Set button scans/selects optimal channel options
- IR sync wirelessly matches transmitter to the receiver frequency
- Tone key prevents unwanted noise when the transmitter is off or out of range
- Channel and Ready/IR/Peak LED displays
- Balanced XLR, unbalanced 1/4" and unbalanced 1/8" outputs
- USB port for adding a Samson XPD Series wireless system, AH9 transmitter, or phone charging
- Rotary volume knob with integral power switch

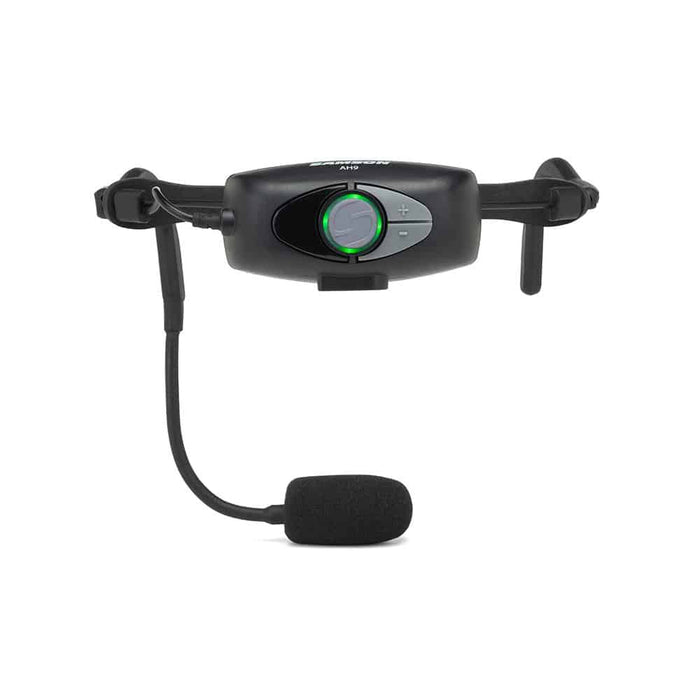

AH9 Micro Transmitter
Samson changed wireless-for-fitness with the original AirLine 77 AH1 headset-transmitter. The AH9 used in the Airline 99 is the next step. Like the original AH1, the AH9 transmitter is mounted directly on a Samson Qe headset and eliminates body packs and cables. It has a 300' operating range, Gain and Mute controls, a battery life LED indicator and an 8-hour rechargeable lithium-ion battery.

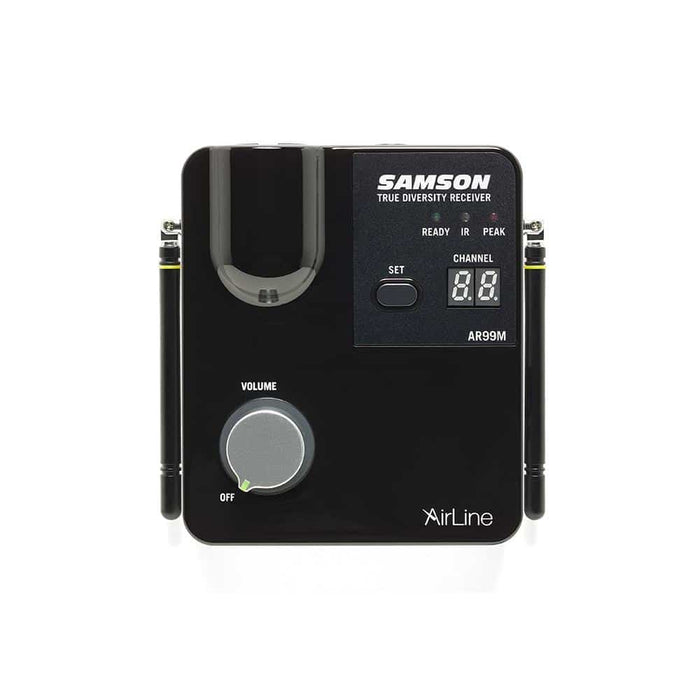

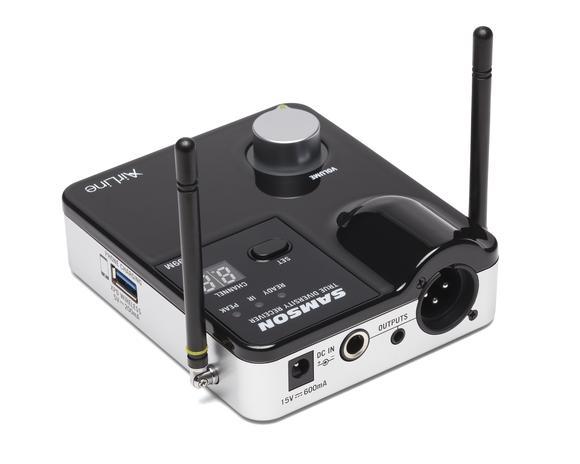

AR99m Micro Receiver
The micro-sized True RF Diversity AR99m receiver has 100 available channels for reliable wireless performance. It features easy setup with 1-touch scan for best channel selection and infrared setup to pair the transmitter with the receiver. A USB port on the AR99m receiver can be used to charge the AH9 transmitter.

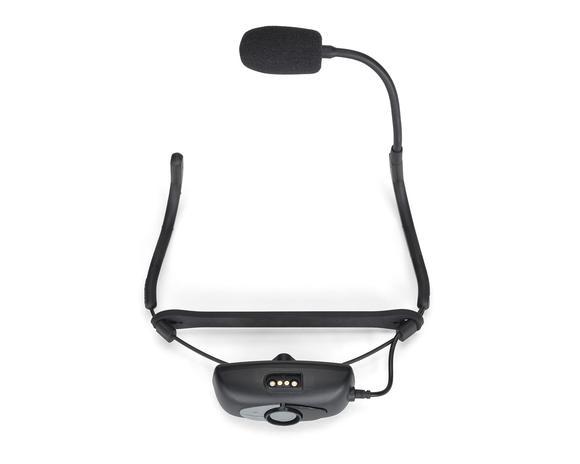

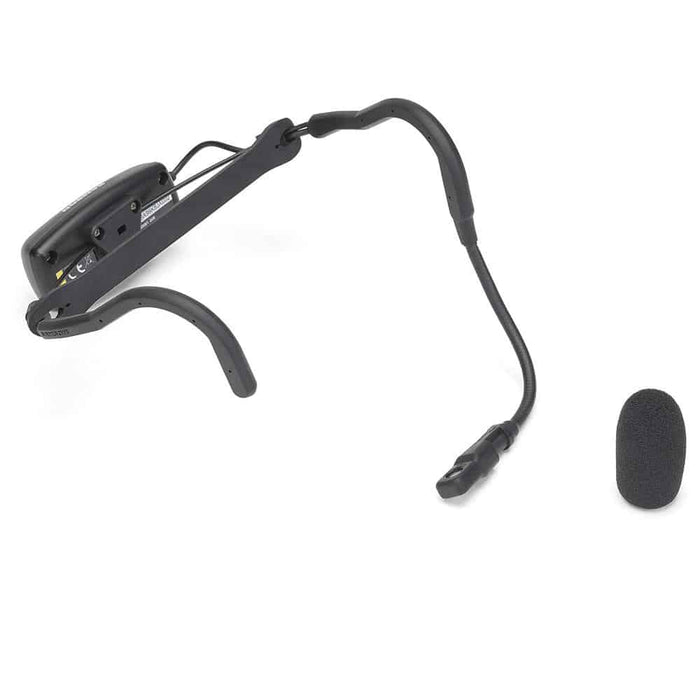

Qe Headset Microphone
The AirLine 99 Fitness Headset system features the popular Samson Qe headset microphone, specifically designed for fitness instructors. The Qe uses a lightweight, double ear headset design with an adjustable strap, making it Samson's best fitting fitness headset mic. The Qe's condenser mic element provides clear tone, allowing your voice to be heard over program music.
AirLine 99m AH9 Fitness Headset Wireless System
- Frequency-agile UHF wireless system
- 100 operating channels across 24MHz bandwidth
- Up to 8 simultaneous systems per frequency band (region dependent)
AH9 Wireless Micro Transmitter
- Micro transmitter mounted directly to a double ear headset (no beltpack or cable required)
- Water/sweat-resistant Qe headset microphone with condenser capsule
- Up to eight hours of battery life using built-in rechargeable lithium-ion battery
- Sealed gold contact charging connector
- Low battery LED indicator
- 300' operating range (line-of-sight)
- Variable Gain control
- 1-touch Mute
- One windscreen included
- Working Range: 300' (100m)
- Audio Frequency Response: 50Hz–15kHz
- T.H.D. (Overall): <1% @ AF 1kHz, RF 46dBu
- Operating Temperature: -10℃ to +60℃
- Tone Key Frequency: 35kHz
AR99m Wireless Micro Receiver
- True RF Diversity micro receiver design minimizes dropouts
- Set button scans/selects optimal channel options
- IR sync wirelessly matches transmitter to the receiver frequency
- Tone key prevents unwanted noise when the transmitter is off or out of range
- Channel and Ready/IR/Peak LED displays

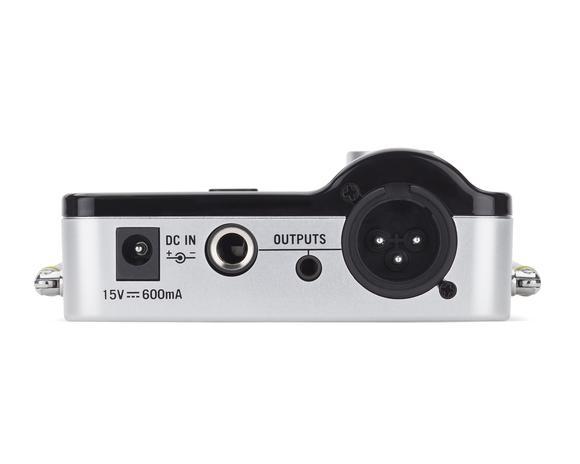

- Balanced XLR, unbalanced 1/4" and unbalanced 1/8" outputs

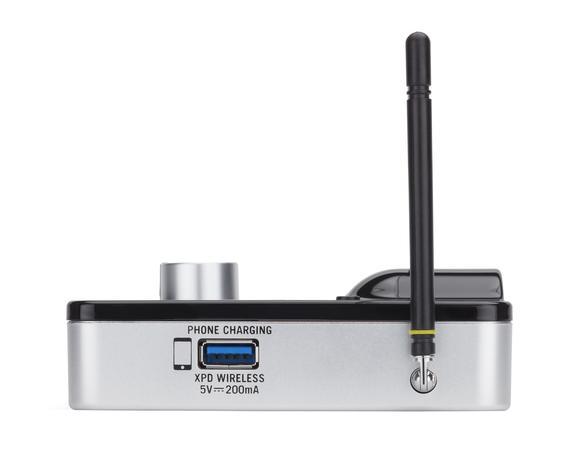

- USB port for adding a Samson XPD Series wireless system, AH9 transmitter or phone charging
- Rotary volume knob with integral power switch
- 1/4-wave antennas
Audio Output Level
- From Φ3.5 & Φ6.3 Jack (unbalanced): +14dBu
- From XLR Jack (balanced): +9dBu
Audio Output Impedance
- From Φ3.5 & Φ6.3 Jack (unbalanced): 810Ω
- From XLR output jack (balanced): 240Ω
- Sensitivity: 100dBm/30dB SINAD
- Image Rejection: >50dB
- Operating Voltage: 15VCC 600mA
- Product Dimensions: 4.25" (110mm) x 3.75" (95mm) x 1.5" (39mm)
- Product Weight: 0.42lb (0.19kg)
