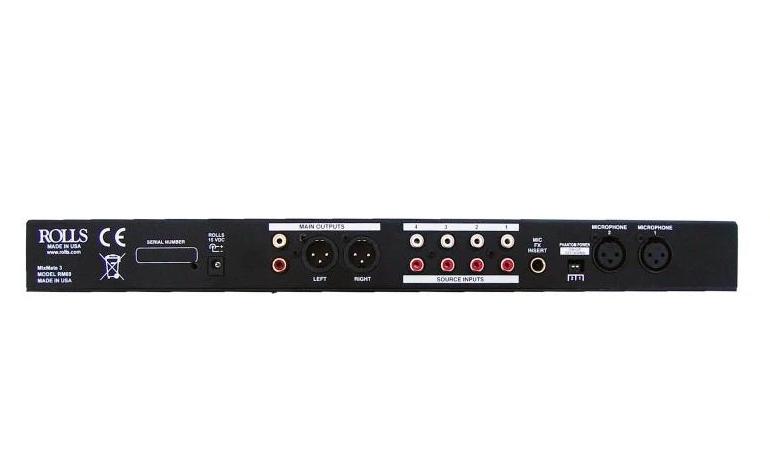

Rolls RM69 Economical Mixer
Product Info
The RM69 MixMate 3 is six channel, single rack space, electronic audio mixer with two microphone inputs and four stereo line inputs. The unit is ideal for installs such as small restaurants or night clubs where space is a consideration, without compromising audio quality. A convenient front-panel 3.5mm jack has been included for connection to any standard MP3 player′s headphone output.
Product details:
- Size: 19” x 1.75” x 4” (48.3 x 4.5 x 10 cm)
- Weight: 5 lbs. (2.3 kg)
- Two XLR Microphone Inputs (including a paralleled front panel input).
- Individually switchable phantom power.
- Four Stereo Source Inputs, Four RCA and one front panel stereo 3.5mm.
- Cue Select Switch.
- Stereo RCA Record Output.
- 1/4" TRS Mic Insert jack (for inserting echo or similar effects, not a microphone input)
- Warranty: 1 Year
- View: Rolls RM69 Economical Mixer Data Sheet
- View: Rolls RM69 Economical Mixer User Manual
This model replaces the RM74, which is no longer in production.
Specifications
- Input Impedance:Mic:600 Ohms XLR balanced
- Source: 22K Ohms RCA
- Mic Insert: 22K Ohms 1/4” TRS insert
- Max Input Level: Mic: -14 dBV Mic level
- Source: 24 dBV
- Headphone Output Impedance: >8 Ohms
- Total - In/Out Connectors: 5: XLR, 5: Stereo RCA, 1: 1/4” TRS, 2: 3.5mm
- Phantom Power: +15 VDC
- Output Level: +17 dBV max
- Output Impedance: 100 Ohms Balanced
- Max Gain: Mic: 60 dB
- Source: 26 dB
- Tone Controls: +/-12 dB 100 Hz Bass
- +/-12 dB 11kHz Treble
- Noise Floor: - 80 dB, THD: <.025%
- S/N Ratio: 96 dB
