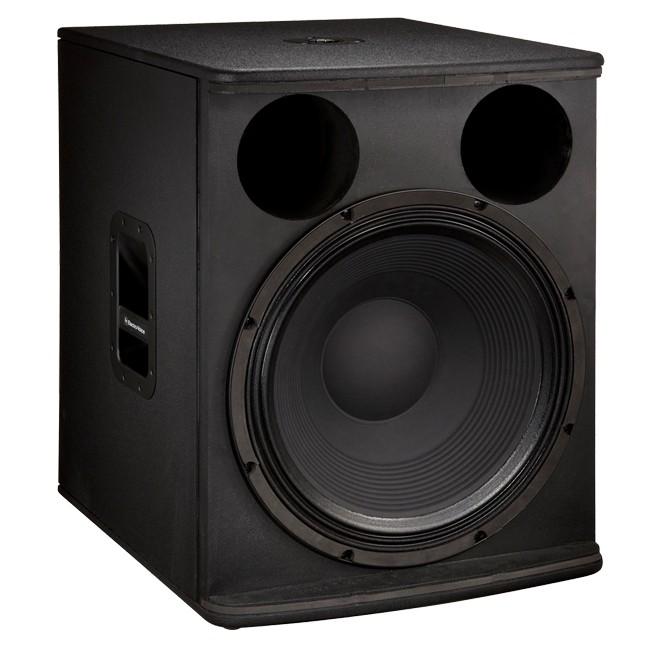

EV Powered 18" Subwoofer 700 Watts of Built-in Power. Heavy-Duty real wood cabinet. Massive bass power for your Group Exercise Sound System. A staple of AV Now's new super bass-heavy Elite sound systems, this cabinet beats out the competition when massive thump is required. Add to your existing sound system easily, or have AV Now's Fitness Sound Experts design a brand new system around the ELX118P.
Optimized for performance with the ELX112P and ELX115P, the ELX118P adds a deep, low-frequency, amplified punch that you can hear and feel.
Product highlights:
- Designed for pro music, Group-x Fitness Classes, large portable sound systems and other applications.
- 18"; woofer for powerful, engaging bass response
- 32 Hz-130 Hz frequency range; 134 dB max SPL
- 700 W Class D lightweight amplifier - runs cool without fans
- Rugged wood cabinet- supports pole-mounted or stacked configurations
- Warranty: 3 years
- View: EV ELX118P User Manual
Specs
| Case Material | 9-ply, 15mm Plywood, Internally Braced, with Textured Paint |
| Frequency Response (-3 dB) | 42 Hz - 100 Hz Hz |
| Frequency Response (-10 dB) | 32 Hz - 130 Hz Hz |
| Max. SPL/1m (calc) | 134 dB |
| Coverage (Nominal -6 dB) H° |
Omnidirectional ° |
| Coverage (Nominal -6 dB) V° |
Omnidirectional ° |
| LF Transducer | (1) EVS-18K, 457mm (18â€) Woofer |
| HF Transducer | N/A |
| Crossover Frequency | 100 Hz |
| Connector Type | (1) XLR/TRS Combo Jack, (1) XLR Link Output |
| Grill | 18GA Steel with Black Powdercoat |
| Height | 661 mm (26.02") |
| Width | 507 mm (19.96") |
| Depth | 574 mm (22.6") |
| Weight Net | 31.7 kg (69.89 lbs) |
| Shipping Weight | 39.3 kg (86.64 lbs) |
