Electro-Voice Electro Voice ELX200-10 10-inch Passive Loudspeaker

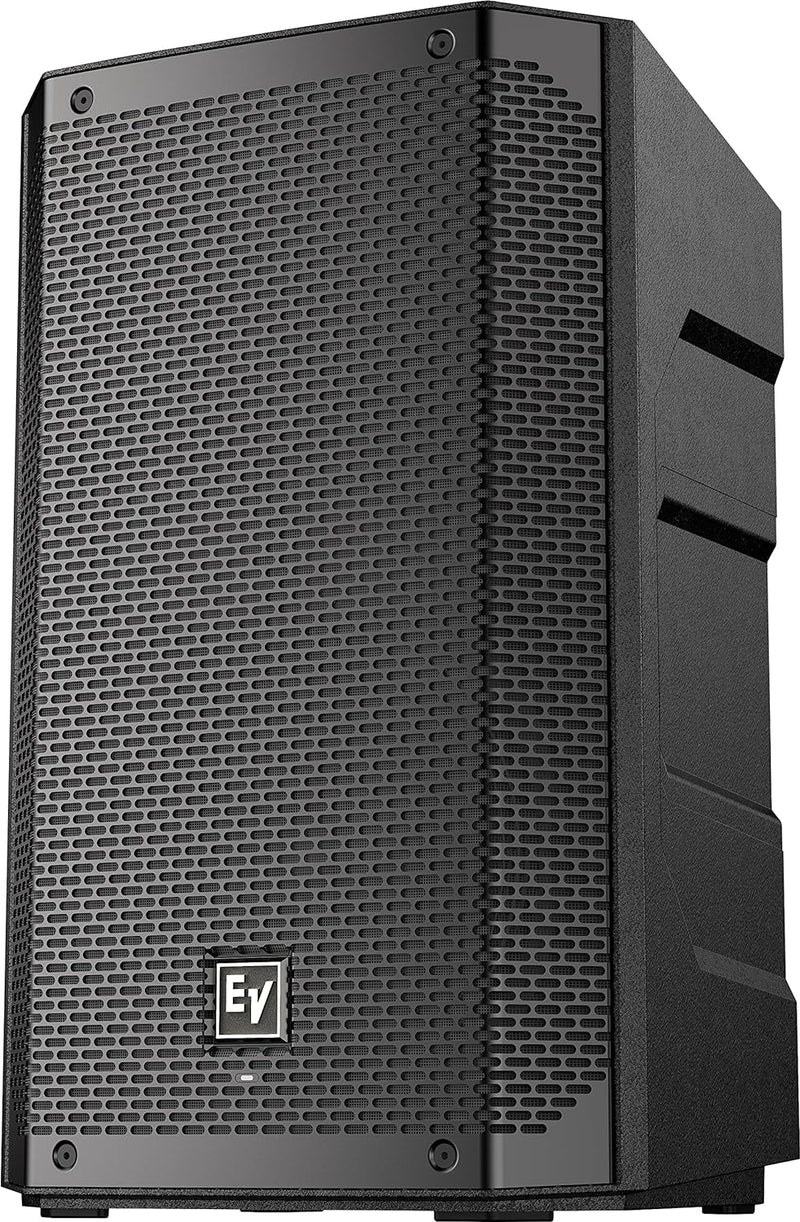

Electro Voice ELX200-10 10-inch Passive Loudspeaker
Electro Voice ELX200-10 10-inch Passive Loudspeaker

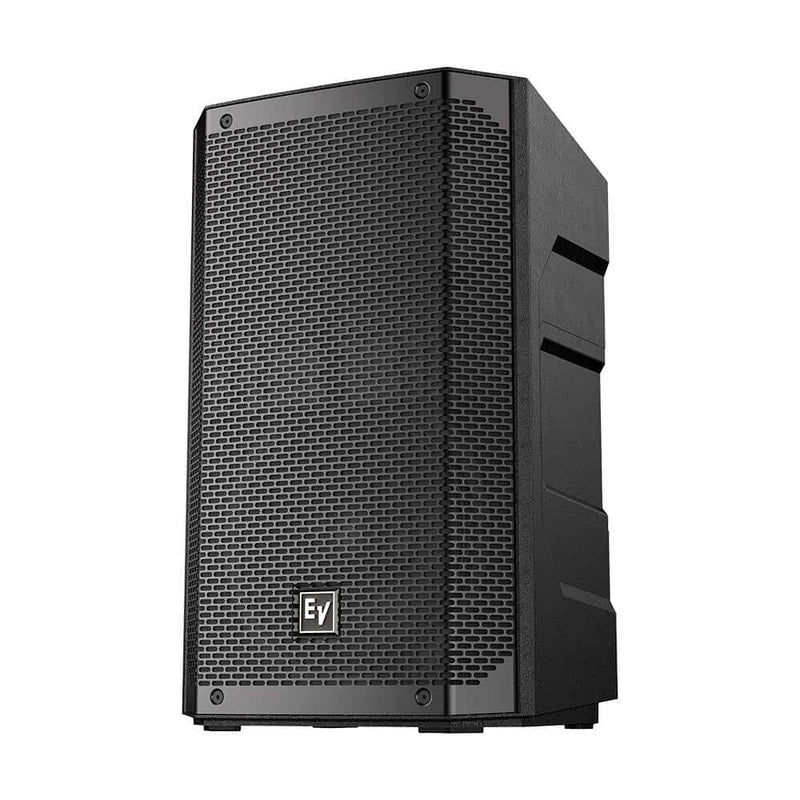

Electro-Voice Electro Voice ELX200-10 10-inch Passive Loudspeaker

Electro Voice ELX200-10 10-inch Passive Loudspeaker

by Electro-Voice
SKU ELX200-10
Save $355.00 Save $355.00
$954.00
$954.00 - $954.00
$954.00
$599.00
$599.00 - $599.00
$599.00

Need more info before you place your order?

Questions about equipment compatibility or shipping times? Contact us, we can help!

Request a quote

Electro Voice ELX200-10 10" Passive Loudspeaker is a 1200 W (Peak), 127 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices. The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.

Product details:

  • Weight Net 29.54lbs (13.4kg)
  • Width 12.99" (330mm) x Height 20.91" (531mm)
  • Suspension (3) M10 suspension points
  • Grille 18 AWG steel with powdercoat
  • High-output EVS-10M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
  • EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
  • Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX two-handle design for easy lifting.
  • *Pole mount and sub sold separately

Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a goto for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.

EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.



Suspension (3) M10 suspension points
Grille 18 AWG steel with powdercoat
Enclosure Material Polypropylene Composite
Connector Type Dual NL4
Minimum Impedance 7.2Ω
Crossover Frequency 2 kHz
HF Transducer DH-1C 1-inch titanium compression driver
LF Transducer EVS-10M 254 mm (10 in)
Coverage (Nominal -6 dB) V 60°
Coverage (Nominal -6 dB) H 90°
Max. SPL/1m (calc) 127dB
Recommended High-Pass Frequency 55Hz
Frequency Response (-3 dB) 65 Hz - 20 kHz
Nominal Impedance 8Ω
Axial Sensitivity (SPL, 1 W @ 1 m) 90dB
Power Rating 1200W
Woofer Size 10inch
Frequency Range (-10 dB) 49 Hz - 22 kHz
Power Handling (Continuous / Peak) 300 W/1200W
Family ELX200
Speaker Type Full-Range
Available Color Black
