Product Information

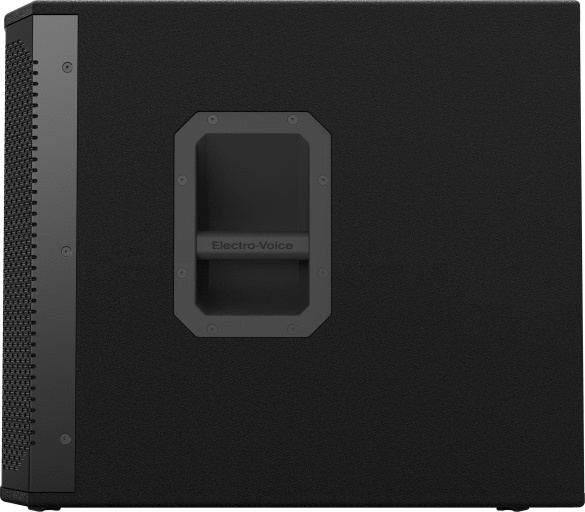

Electro-Voice's EKX-18S 18" Passive Subwoofer 1600 W. This Passive Subwoofer by Electro-Voice features a lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish. Large slot ports for low distortion and excellent bass extension. Metal grille reinforcement bar (two bars on the EKX-18S). M20 threaded pole mount plate.
Electro-Voice EKX-18S User Manual
Product specifications:
- Frequency Range (-10 dB) 35 Hz - 300kHz (Half Space Measurement)
- Weight Net 70.11lbs (31.8kg)
- Depth: 24.09" (612mm)
- Width: 23.86" (606mm)
- Height: 20.47" (520mm)
Specs
| Axial Sensitivity (SPL, 1 W @ 1 m) | 96dB |
| Connector Type | Dual NL4 |
| Enclosure Material | 15 mm, plywood with EVCoat |
| Family | EKX |
| Frequency Response (-3 dB) | 50 Hz - 100Hz (Half Space Measurement) |
| Grille | 18 AWG steel with powdercoat |
| LF Transducer | EVS-18C 457 mm (18 in) |
| Max. SPL/1m (calc) | 134dB |
| Maximum SPL | 134dB |
| Minimum Impedance | 7.0Ω |
| Nominal Impedance | 8Ω |
| Passive Power Handling | 1600W peak |
| Power Handling (Continuous / Peak) | 400 W/1600W |
| Power Rating | 1600W |
| Powered or Passive | Passive |
| Recommended High-Pass Frequency | 30Hz |
| Shipping Weight | 88.41lbs (40.1kg) |
| Speaker Type | Subwoofer |
| Woofer Size | 18inch |
