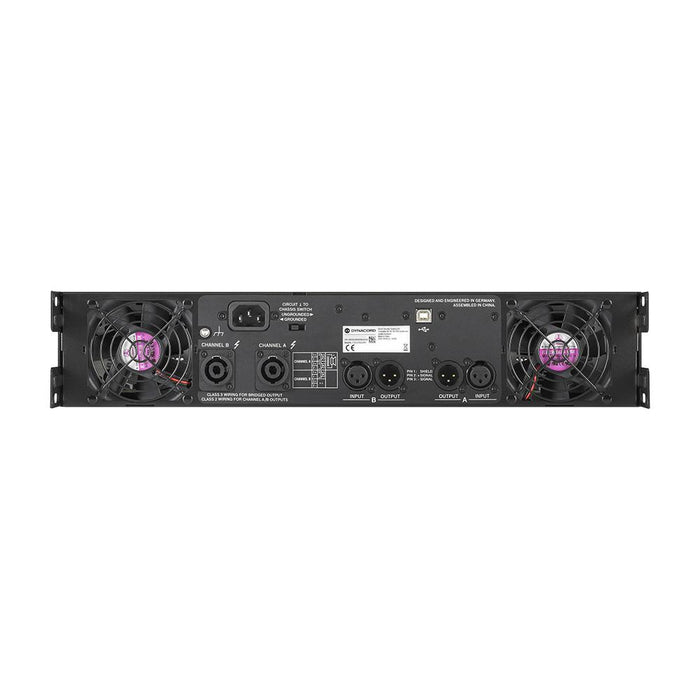

Dynacord L3600FD DSP Power Amplifier
Product Info
Dynacord's L3600FD DSP 2 x 1800 w power amplifier is great for live professional live and mobile performance applications.
Product highlights:
- Fully integrated professional speaker processing with FIR drive technology
- Market-leading acoustic performance and rock solid reliability
- Intuitive, simplified set-up, control and operation in SONICUE sound system software with firmware 2.0
- Color Black
- Dimensions (W x H x D), mm 483 x 88 x 462.4
- Weight 18.2 kg (40.1 lb)
Dynacord L Series are professional dual channel audio amplifiers for live and mobile applications. Integrated digital signal processing provides access to professional speaker processing with FIR Drive technology. L Series amplifiers utilize Class A/B resp. Class H topologies, which provide market leading acoustic performance and reliability. The connectivity is optimized for the needs of mobile applications. A front panel LC display allows local control and supervision of the amplifier. An intuitive system control software allows fast system setup, flexible system control and comprehensive supervision.
Specifications:
Power Requirements
240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
Power Consumption
⅛ Maximum Output Power @ 4 Ω 850 W
Mains Fuse
240 V/230 V: T15AH; 120 V/100 V: T30AH
Protection
Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay
Cooling
Front-to-rear, 3-stage-fans
Ambient Temperature Limits
+5°C to +40°C (40°F to +105°F)
Safety Class
I
