DataVideo Touch Panel Controller TPC-700
DataVideo Touch Panel Controller TPC-700
DataVideo Touch Panel Controller TPC-700
DataVideo Touch Panel Controller TPC-700

DataVideo Touch Panel Controller TPC-700

by Data Video
SKU TPC-700
$800.00 - $800.00
$800.00
$800.00 - $800.00
$800.00

Need more info before you place your order?

Questions about equipment compatibility or shipping times? Contact us, we can help!

Request a quote

Easy Control for Datavideo Virtual Studio & Switcher Systems

The Datavideo TPC-700 Touch Panel Controller provides fast and intuitive control of the TVS-2000A Virtual Studio System and Datavideo 3200-series switchers. With a dedicated app and preset operation functions, the TPC-700 allows users to manage complex production tasks with just a few taps on its 7-inch touchscreen.

View the user manual HERE.

Switch, Record, and Live Stream with Ease

The TPC-700 / TPC-700P is the ideal control companion for the TVS-2000A Virtual Studio System. The pre-installed TVS-2000A app includes presets for common operations such as:

  • Multi-camera virtual studio switching
  • Downstream key control
  • Virtual studio preset selection
  • Recording and live streaming control

The intuitive user interface is optimized for touch operation, allowing smooth production control with minimal training. Easily manage your virtual production workflow and go live in seconds.

Simple Setup for 3200 Series Switchers

Setting up a 3200-series switcher has never been easier. Using the TPC-700, users can quickly assign and control:

  • Multi-camera virtual studio switching
  • AUX outputs
  • Crosspoints and Flex Sources
  • Picture-in-Picture (PIP)

Wide Compatibility Across Datavideo Systems

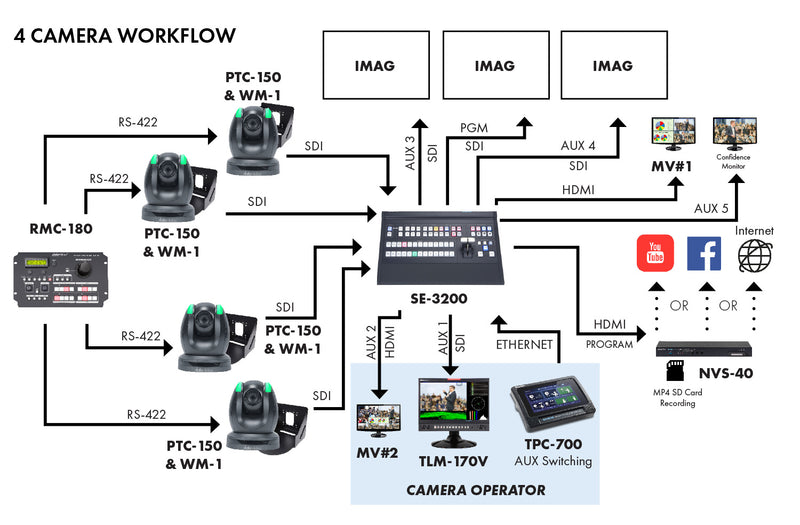

The TPC-700 Touch Panel Controller is the best assistant for a wide range of Datavideo products, including:

  • SE-3200 Switchers
  • VGB-2000 & VGB-4000 Pro Presentation Systems
  • DVK-400 4K Chromakeyer
  • TVS-2000A Tracking / Trackless Virtual Studio System
  • iCast 10NDI 5-Channel All-in-One Streaming Switcher

Technical Specifications

Model Number TPC-700
Touch Screen 7" Capacitive Touch Screen
Resolution 800 × 480
Firmware Upgrade Via USB 2.0
Control Interface RS-232 (RJ-45)
Power DC 12V / Power over Ethernet (PoE)
Power Consumption 10W
Dimensions 220 × 152 × 79 mm
Weight 0.85 kg
Operating Temperature 0°C – 40°C

What’s in the Box

  • 1 × TPC-700 Touch Panel Controller
  • 1 × DC 12V Power Adapter
  • 1 × D-Sub 9-Pin to RJ-45 Cable

Request a Quote Form - Click HERE
