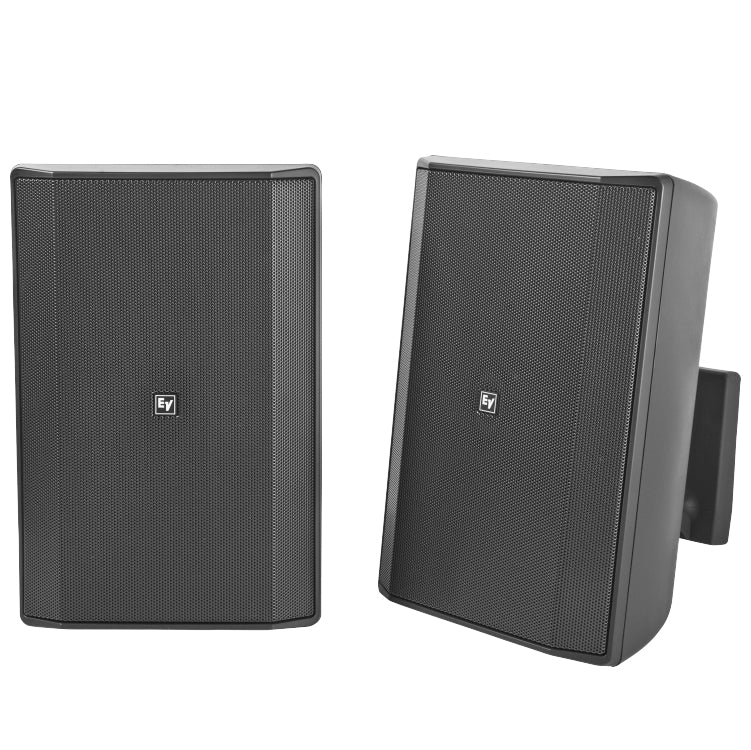

The Electro-Voice EVID-S8.2 is a high-performance, two-way, full-range 8" surface mount speaker designed for commercial use. Offering wide, uniform coverage and exceptional sound quality, it excels in both background and foreground music, paging, and sound reinforcement. Its durable, weather-resistant construction and flexible mounting options make it ideal for indoor and outdoor environments such as fitness centers, gyms, restaurants, and patios. With easy installation and a sleek design, the EVID-S8.2 delivers reliable, professional audio performance in a versatile package.
- Innovative mount system is included for quick, simple, and reliable installations
- Carefully engineered for outdoor environments (IP54), without compromising performance
- Long throw 8" (203 mm) woofer housed in a fire-rated ABS plastic enclosure for extended LF performance down to 50 Hz
- 90 W power handling provides for 110 dB maximum SPL (116 dB peak)
- 70/100 V transformer version (EVID 8.2T) available for constant voltage systems
The EVID-S8.2 includes the unique and innovative mount system, from Electro-Voice, making every installation quick, simple, and reliable. The mounting system allows for 90 degrees of rotation horizontally, and 45 degrees of rotation vertically, and it can be easily installed on walls and ceilings. The mounting system comes already assembled and ready to be used, ready to make any job easier.
Connector Type
- Captive screws on wall bracket. Removable locking 4-pin connector (Euroblock) – (2) for connection to additional speakers in a distributed line. Max. wire size 12AWG (2.5 mm)
Specifications
- Color: Black
- Recommended High-Pass Frequency 50Hz
- Height 15.35" (390mm) x Width 9.84" (250mm) x Depth 8.78" (223mm)
- Weight Net 11.24lbs (5.1kg)
- Shipping Weight 28.66lbs (13kg)
- Power Handling (Continuous / Peak) 90W/360W
- Environmental Specs IP54 (per IEC-60529)
- Nominal Impedance 8Ω
- Frequency Range (-10 dB) 50 Hz – 20 kkHz
- Weatherized Yes
- Minimum Impedance 6Ω
- HF Transducer 1 inch (25 mm)
- Frequency Response (-3 dB)¹ 70 Hz – 20 kHz
- Max. SPL/1m (calc)² 110dB
- Coverage (Nominal -6 dB) H 90°
- Coverage (Nominal -6 dB) V 90°
- LF Transducer 8 inch (203 mm)

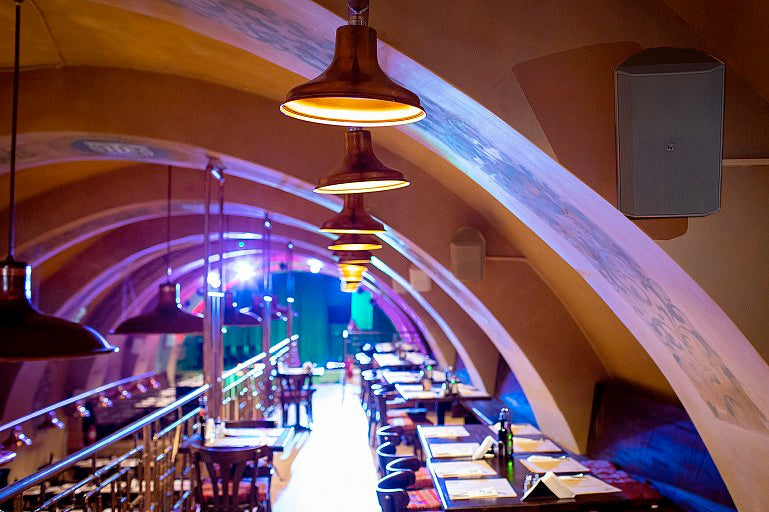

The EVID-S8.2 has been carefully engineered to excel in both indoor and outdoor environments. Its superior design strikes the perfect balance between durability and performance, making it an ideal choice for various applications. With an impressive IP54 rating, the EVID-S8.2 demonstrates exceptional weather resistance, guarding against sun, salt, and moisture for reliable operation even in challenging outdoor conditions.
For those seeking the ultimate level of resilience, the EVID-S5.2X is designed to conquer the toughest weather scenarios, raising the bar in weather-proofing technology. With an impressive IP65 rating and a marine-grade aluminum grille, the EVID-S5.2X offers unparalleled protection against sun, salt, and moisture, ensuring unfaltering performance even in the most extreme environments. Whether you require audio reinforcement in coastal areas, poolside settings, or any location where the elements can be unforgiving, the EVID-S5.2X guarantees a premium audio experience that remains uncompromised.
Choose the EVID-S8.2 for exceptional weather resistance and outstanding performance in a wide range of indoor and outdoor settings. For those who demand the utmost durability and resilience, the EVID-S5.2X stands as the ultimate choice. Our surface mount speaker lineup has you covered, providing reliable solutions for any audio needs, regardless of the conditions.
All EVID-S models are available in black or white, and can be easily painted to match the décor. Transformer versions are also available for constant voltage systems.
The wide range of EVID surface mount speakers has been designed to work together as a complete system in a variety of different surface mount constructions, and to be used in combination with other EVID ceiling and in-wall speakers.
