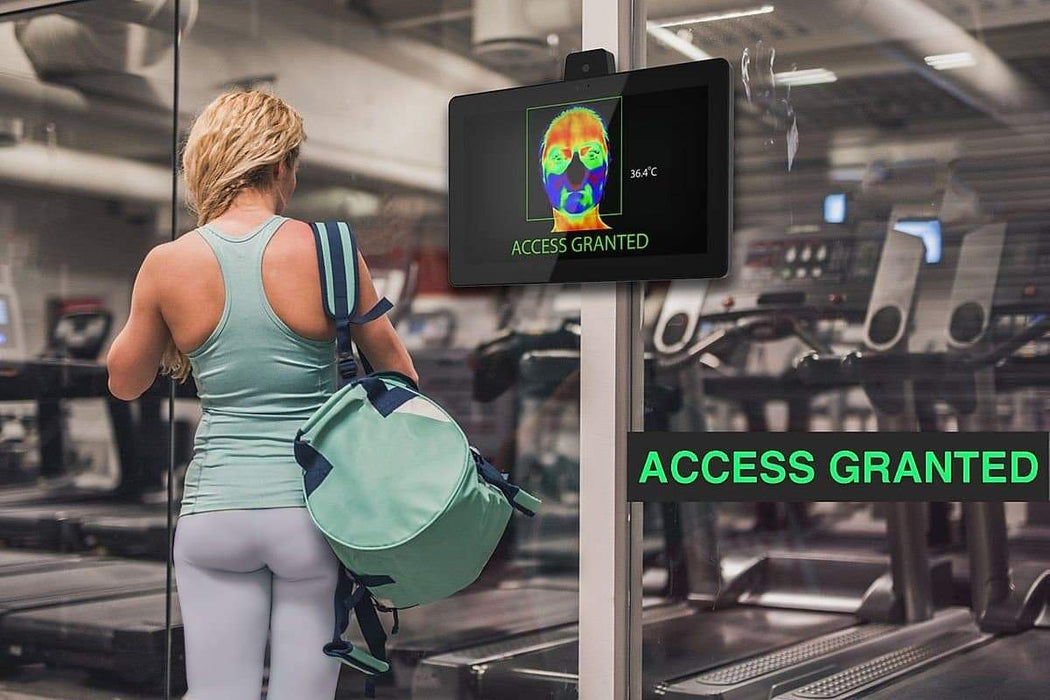

The Temperature-Check 10-inch Tablet is an Android based all-in-one infrared temperature sensing tablet. Easily ensure that people entering a fitness center, yoga studio, wellness center or other location are not running a high temperature. The tablet provides alerts when a person is running a high temperature within one-second from 3.3-ft (1 meter) away.
The system uses an advanced algorithm for detecting and calculating heat signatures. Based on technology developed in Germany, the highly accurate sensor measures with a tolerance of +/- 0.3 degrees Celsius (+/- 0.5 degrees Fahrenheit).
Why a temperature sensor?
– Provides the first layer of screening protection
– More hygienic with non-touch infrared technology
– Multiple devices can be monitored by a single user
Product highlights:
- Scan distance: 0.5 to 1 meter (approx. 1’ 8” to 3’ 3”)
- Accuracy: +/- 0.3°C (+/- 0.5°F)
- Scan speed: 1 second
- Camera reversible 180°
- Different sized tablets are available: 10”, 15.6”, and 21.5”
- Quad-core 1.8Ghz processor
- WiFi and PoE Ethernet (TTS-10 only)
- Language: Multi language
- Warranty 2 Years
- Slze(WxDxH) 10.5" x 1.3" x 6.49" inches
- Product Weight: 1.54lbs
Future firmware upgrade options
– Photo & thermal result email alerts
– Facial detection
– Customized flagging
– ReAX control engine for automation & integration with third-party devices and access systems
– Digital signage capabilities
Specs
Panel Information
- Resolution 1280 x 800
- Brightness 350 cd/m²
- Contrast ratio 800:1
- Aspect Ratio 16:10
- Active Display Area 134.8 x 216.2mm
- Viewing angle H:170° / V:170°
- Touch Tech. 5 point cap touch (6H semi-tempered glass)
Hardware & OS
- CPU RK3288 Cortex A17, Ouad core 1.8GHz
- RAM 2GB DDR3
- ROM 8GB eMMC Flash
- OS Android 7.1
Video/Image
- Video format H.265, VP8, RV, WMV, AVS, H.263. MPEG4, HTMLS, Flash 10
- Auxiliary video HDMI output for remote monitoring of results
- Audio format MP3/ WMA / AAC etc.
- Image format JPEG, BMP, PNG
Audio
Communication
- Bluetooth EDR 4.0
- WiFi 802.11 b/g/n 2.4GHz and 5GHz
- Ethernet 10/100 LAN
General Information
- Color Black

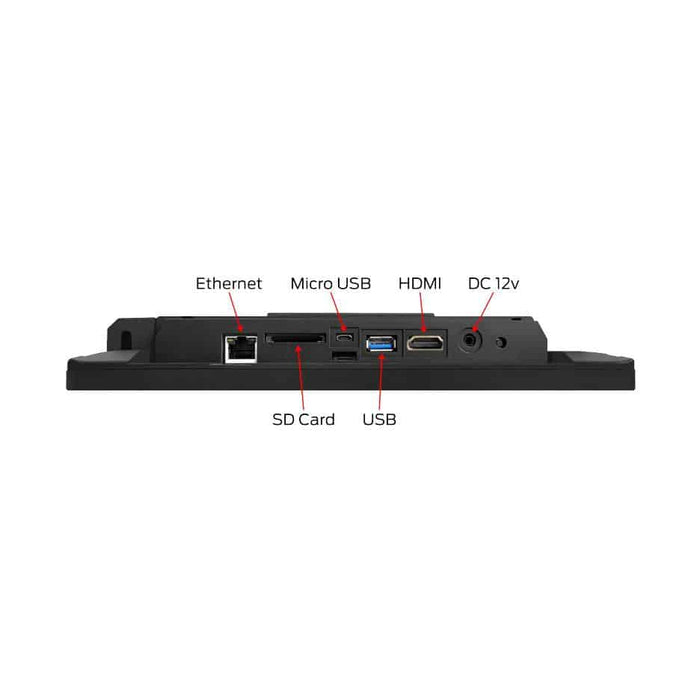

- I/O HDMI Output, RJ45 x 1, USB x 1; SD slot x I; Micro-USB x 1; 3.5mm audio x 1; Recover x 1; expandable 2 USB
- AV Capability Front Facing Camera 2 MP fixed focus
- Included in Box Tablet, Power Adapter, Power cable
- Sensors G-sensor
- Consumption 11W
- Power Input PoE & 12V 2A Wall Supply
- Operating Environment Operating: 32°F to 100'F (0°C to 40°C); Storage: -4° F to 122°F (-20'C to 50°C) Operating: 20%-80%; Storage· 10%-95%
- Certification CE, FCC, ROHS
- Language: Multi language
- VESA 75
- Warranty 2 Years
Infrared temperature Sensor
- Power Input 3.3- 3.6V, 50mA, USB connect
- Size 65.2mm x 38.5mm x 22mm
- Temperature check distance 0.3m-1m
- Temperature check range 30°C to 45°C
- Temperature check error ±0.3°C@1 Hz
Dimension
- Slze(WxDxH) 10.5" x 1.3" x 6.49" inches
- Product Weight: 1.54lbs
Please note:
The TTS Temperature-Check Tablets are designed to detect temperature anomalies. It’s important to understand there are many factors, including environmental and physiological that can impact a person’s surface temperature reading. Skin surface temperature vs actual core body temperature may differ either way. The TTS Temperature-Check Tablets must be operated in accordance with the manufacturer’s user guide.
The TTS Temperature-Check Tablets are not intended nor designed to diagnose or detect medical conditions including, but not limited to, viruses or other illnesses. The TTS temperature-check tablets should only be used to detect variations in surface temperature. In the event that an elevated skin temperature is detected, the subject should be advised to check temperature with an approved medical thermometer and the finding confirmed. Absence of an elevated skin temperature does not preclude a fever.
