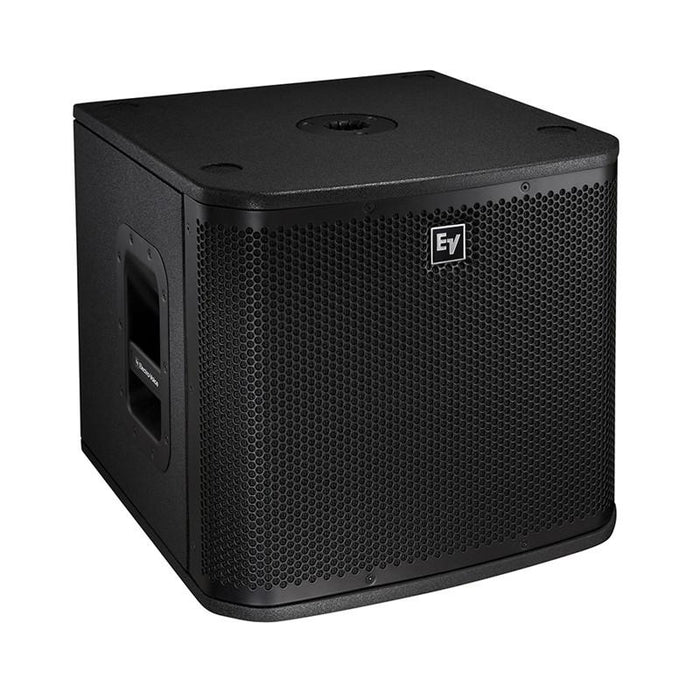

Electro Voice ZXA1-Sub Powered Subwoofer
Product Info
This 700 Watt Powered 12" Subwoofer Extending the Electro-Voice ZXA1's size-defying performance and sleek styling into the low-end realm, the ZXA1-Sub packs 700 W of self-powered punch into a low-profile wood enclosure.
Extending the ZXA1’s size-defying performance and sleek styling into the low-end realm, the ZXA1-Sub packs 700 W of self-powered punch into a low-profile wood enclosure. Match ZXA1 with ZXA1-Sub and hear just how big a small rig can sound, and add some serious punch to your group exercise room's sound system.
Product highlights:
- 15mm Plywood Enclosure, Internally Braced, with Textured Paint
- EVS-12S 305mm (12") Woofer for Powerful, Engaging Bass Response
- Class D Lightweight Amplifier
- Pole Mount for Full-Range Systems
- Dual XLR Inputs and Outputs
- Switchable EQ Modes for Different Applications
- LED indicators for Power On and Limit
- 3 Year Limited Warranty
- Height 400 mm (15.75")
- Width 444.5 mm (17.5")
- Depth 457.2 mm (18")
- Weight Net 20.9 kg (46.08 lbs)
- Product Brochure: ZXA1 Brochure
- User Manual: ZXA1 User Manual
Specs
Amplifier Power | 800 Watts (RMS) |
Color | Black |
Coverage (Nominal -6 dB) | Omnidirectional |
Input Connections | (2) XLR Stereo Input, (2) XLR Stereo Output |
Power Requirement | 120V: 90V-132v, 1.0 A, 50-60Hz 230V: 190V-264V, 0.6A, 50-60Hz |
Speaker Type | Powered Subwoofer |
Frequency Response (-3 dB) | 53–93 Hz Half Space |
Frequency Response (-10 dB) | 44–118 Hz Half Space |
Max. SPL/1m (calc) | 126 dB Half Space |
System Power Handling (Continuous/Program/Peak) | 700 Watts |
LF Transducer | (1) EVS-12S, 305mm (12â€) Woofer |
Crossover Frequency | 100 Hz |
Enclosure Material | 9-ply, 15mm Plywood, Internally Braced, with Textured Paint |
Outdoor | No |
Grill | 16GA Steel with Black Powdercoat |
Height | 400 mm (15.75") |
Width | 444.5 mm (17.5") |
Depth | 457.2 mm (18") |
Weight Net | 20.9 kg (46.08 lbs) |
Shipping Weight | 26.5 kg (58.42 lbs) |
