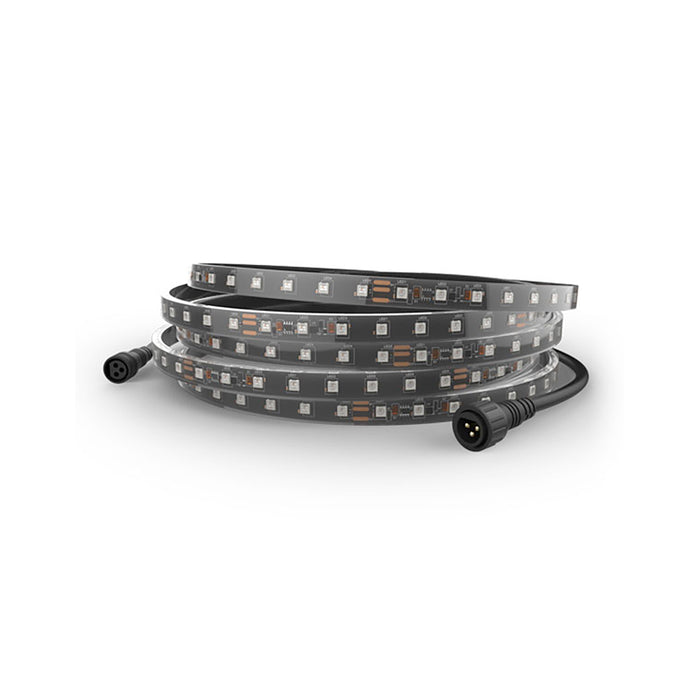

Chauvet Pro ÉPIX Flex 20 Strip Light

Chauvet Professional - Epix Flex 20 - 5m LED Light Strip Flexible

by Chauvet Professional
SKU EPIXFLEX20
Save $35.99 Save $35.99
$345.99
$345.99 - $345.99
$345.99
$310.00
$310.00 - $310.00
$310.00
Request a quote

Need more info before you place your order?

Questions about equipment compatibility or shipping times? Contact us, we can help!

The Chauvet Professional EPIX Flex 20 Outdoor-Rated LED Light Strip from Chauvet Professional is a durable, outdoor-rated 16.4' flexible LED strip that can be cut and prolonged without compromising its IP67 dust- and water-resistant rating. The 240 individually controllable RGB LEDs can be used to provide a variety of color-changing options and can be dimmed and brightened as you see fit for nightclubs, DJ booths, restaurants, and architectural entertainment venues.

The unit's plug-and-play 24V system allows for a 75' extension between the first EPIX Flex 20 and the EPIX Flex Drive (sold separately), which is required for operation and control and can support up to eight EPIX Flex 20 strips. Control options include DMX, Art-Net, and sACN (streaming ACN). The EPIX Flex 20 offers reduced programming time by tapping into alternate personalities of 17 or 34 channels or the pixel personality of 720 channels for use with video servers.

In addition, an installation kit with 10 mounting brackets and a termination kit with an end cap and silicone glue is included for permanent installation.

Includes

  • ÉPIX Flex 20
  • Installation kit with 10 bracket sets
  • Termination kit with end cap and silicone glue

Features

  • Outdoor pixel-mapping LED strip that is flexible and can be used in various applications
  • Includes 10 sets of mounting brackets and screws for permanent installations
  • Reduce programming time and increase application by using the alternate personalities of 17 or 34 channels, or use the pixel personality for use with video servers
  • Versatile control options include DMX, Art-Net, and sACN (streaming ACN) to support the touring, rental, and installation markets
  • RDM supported for remote configuration
  • Sold in 5-meter rolls, each roll can be cut to length to accommodate custom installations
  • ÉPIX Flex Drive required for operation
  • Dimensions 195.85 x 0.55 x 0.2" / 4974.59 x 13.97 x 5.1 mm
  • Weight 1.2 lb / 0.5 kg
  • Package Weight 1.705 lb
  • Box Dimensions (LxWxH) 9.2 x 9.2 x 2.2"

Specs

Specifications

  • Optical:
    • Light Source: 240 LEDs (tri-color RGB) SMD 50,000 hours life expectancy
    • Lumens: 140 lm/ft
    • Viewing Angle: 160°
    • Pixels: 240 x 1
    • Pixel Pitch: 20 mm
  • Physical:
    • Dimensions: 196.85" x 0.55" x 0.2" (5,000mm x 14mm x 5 mm)
    • Weight: 1.2 lb (0.6 kg)
    • Exterior Color: Clear
    • Housing Material: high-temperature silicone with UV protection
  • Connections:
    • Data Connectors: 3-pin IP65 FLEX cable
    • Physical Linking: 2 ÉPIX Flex 20 (per output) (4 total) (without ÉPIX Flex Boost); 2 additional ÉPIX Flex 20 with ÉPIX Flex Boost (per output) (8 total)
  • Control:
    • Control Protocol: Art-Net, sACN, DMX
    • DMX Channels: 17, 34 or PIXEL
    • Art-Net Channels: 17, 34 or PIXEL
  • Electrical:
    • Power and Current: 79 W, 0.653 A @ 120 V, 60 Hz
    • Power and Current: 93 W, 0.450 A @ 208 V, 60 Hz
    • Power and Current: 95 W, 0.417 A @ 230 V, 50 Hz
  • Certifications and Qualifications:
    • CE, MET
    • IP Rating: IP67, temporary outdoor/wet use
    • Temperature (ambient): -4 °F to 113 °F (-20 °C to 45 °C)
  • Required Accessories:
